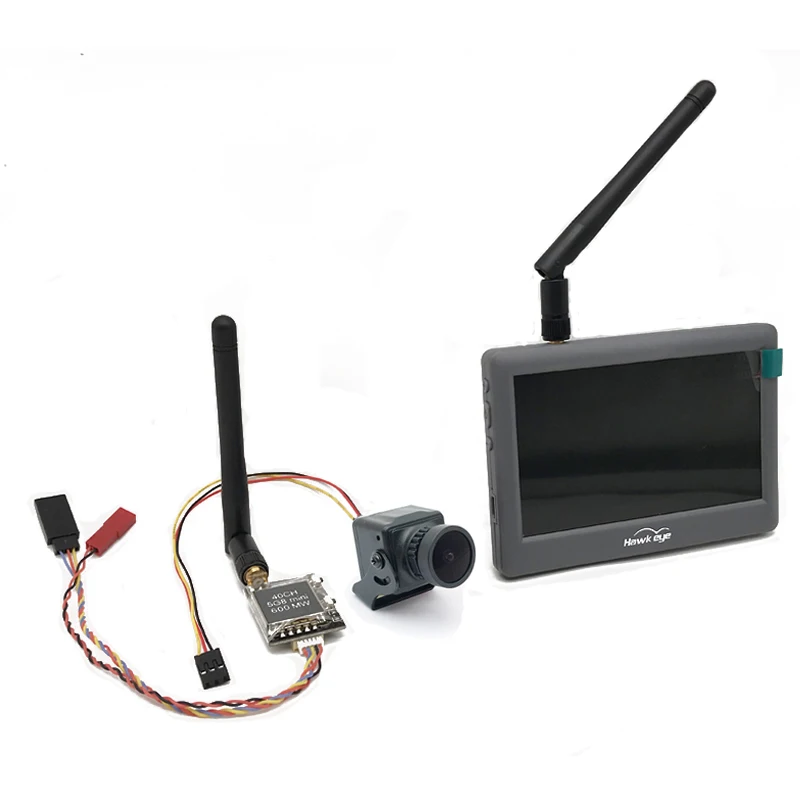

Ready use 5.8G FPV system Hawkeye 4.3 inch monitor with receiver battery+600mW Transmitter+CMOS 1200TVL Camera For RC FPV Drone

Package include

1* 5.8G 600mW Transmitter
1* CCD 600TVL camera
1* Hawkeye 4.3 inch FPV Monitor
and some cables

Note:We Use this NEW Camera Now

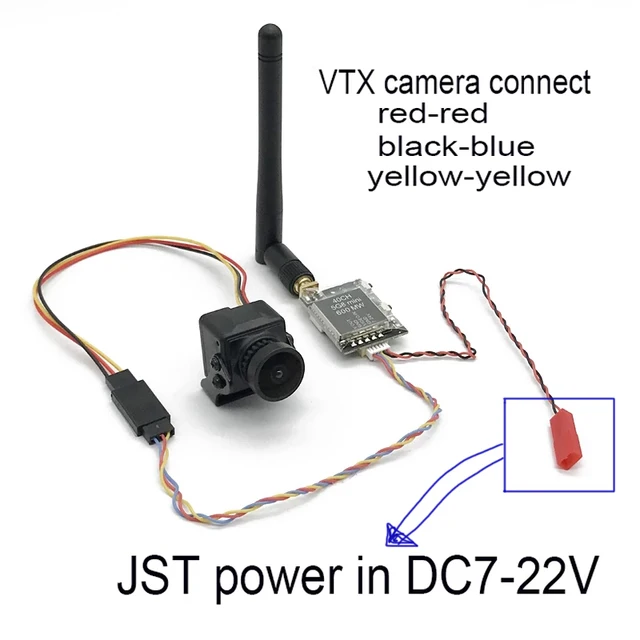

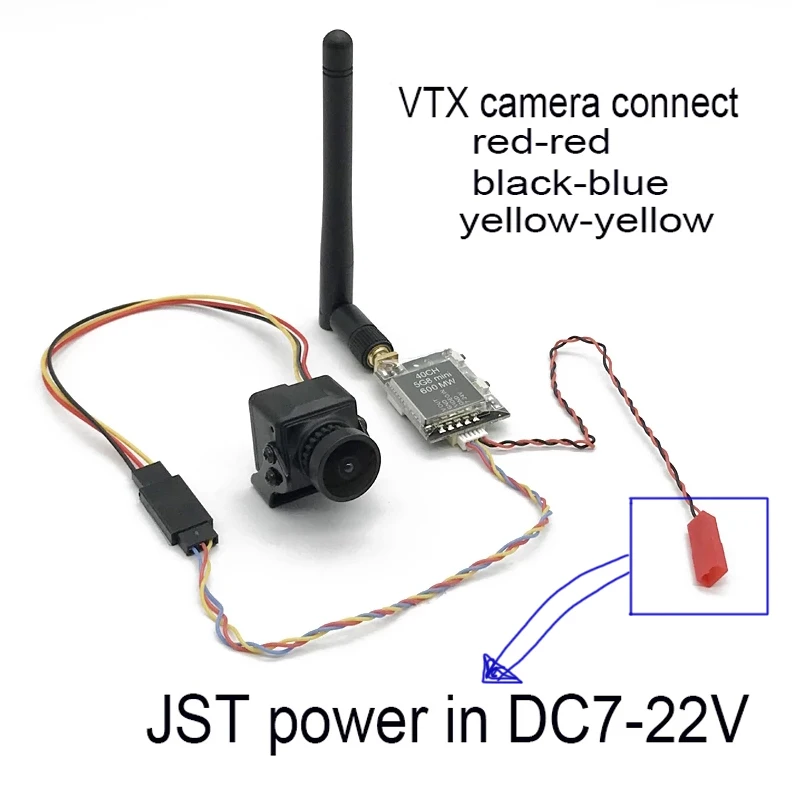

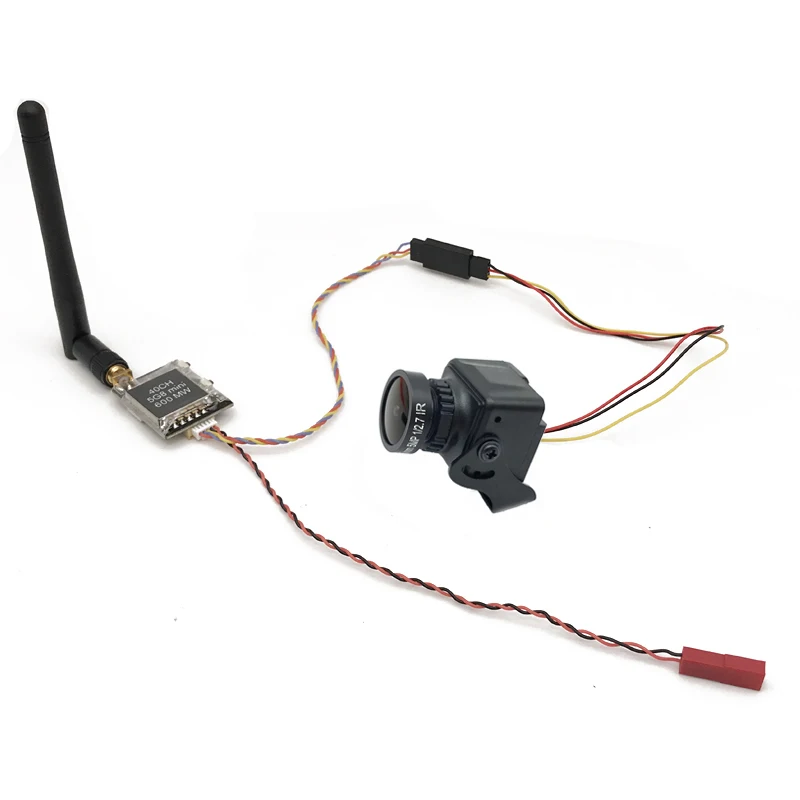

5.8G 600mW Transmitter and RACE CAM 600TVL CCD 5.8G FPV Camera

The transmitter and camera are connected. easy to use.

Only need power to work(7-24 V).

You can use them on your Drone , Car or Boat

Works well！！

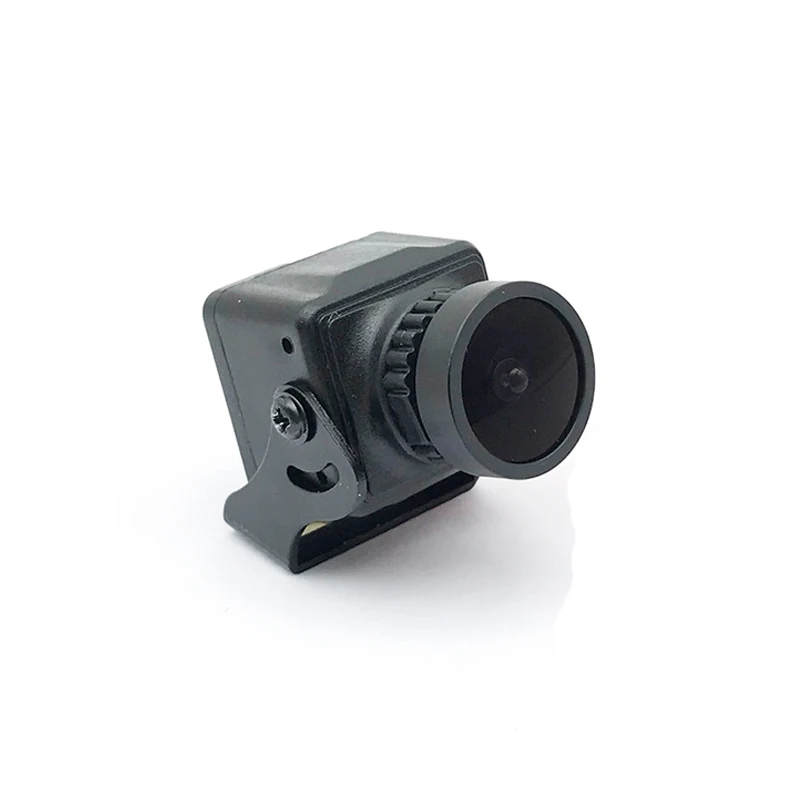

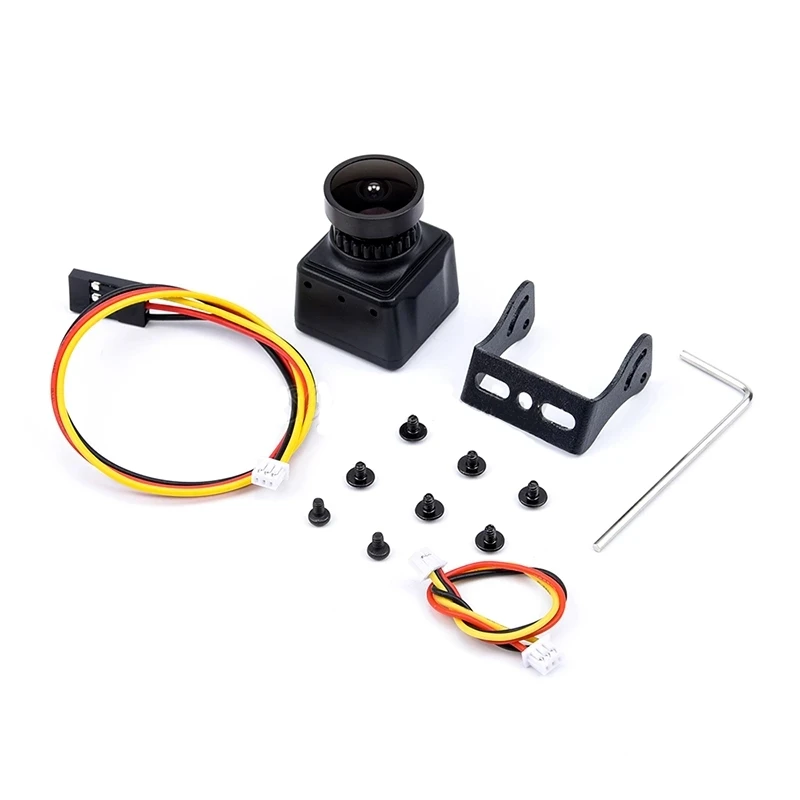

CMOS 1200TVL Black Camera

Item Name : 1200TVL Mini Camera
Size : 22mm x 22mm
Format : PAL Optional
PAL: 1920H×1080V(1MP)
NTSC: 1020H×1920V (1MP)
Horizontal Resolution : 1000TVL
Video Output : 1.0Vp p/75ohm
AGC : 0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB
WB : ON/OFF
Exposure Type: electronic exposure
Electronic Shutter : 1/50(1/60) 1/100000 second
Gamma Correction : 0.45/1.0
Synchronization Mode : inter sync
Lens : 2.5mm 130degree/2.8mm 120degree optional
Specification :
Working Voltage : DC5 to 12V(wide voltage , measured 5 to 13V)
Working Current : 70mA(ow power consumption)
Working Temp. : -20degree to 60degree
Wetness: 0% ~ 98%

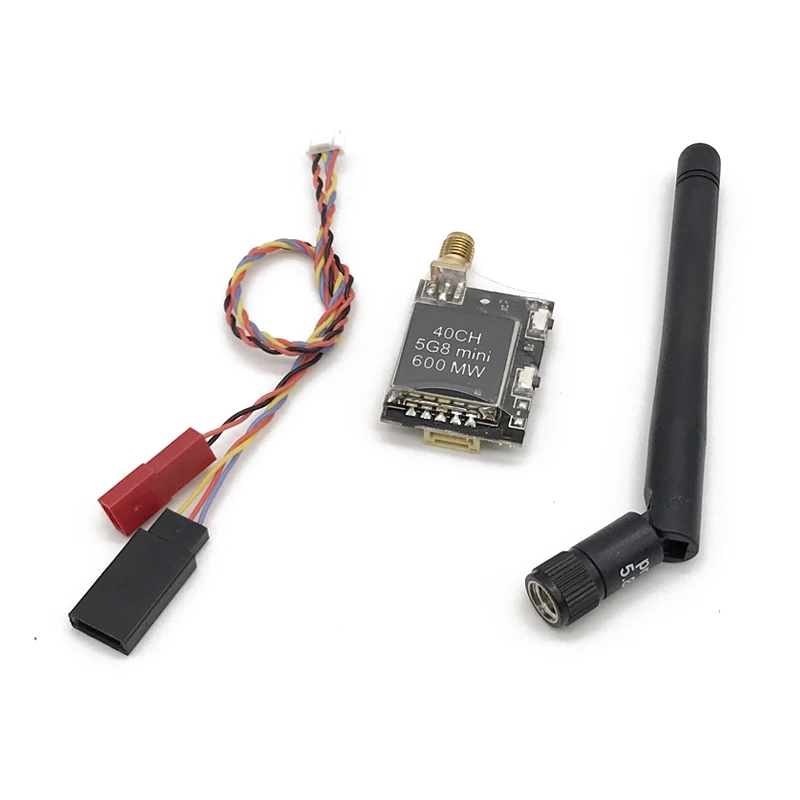

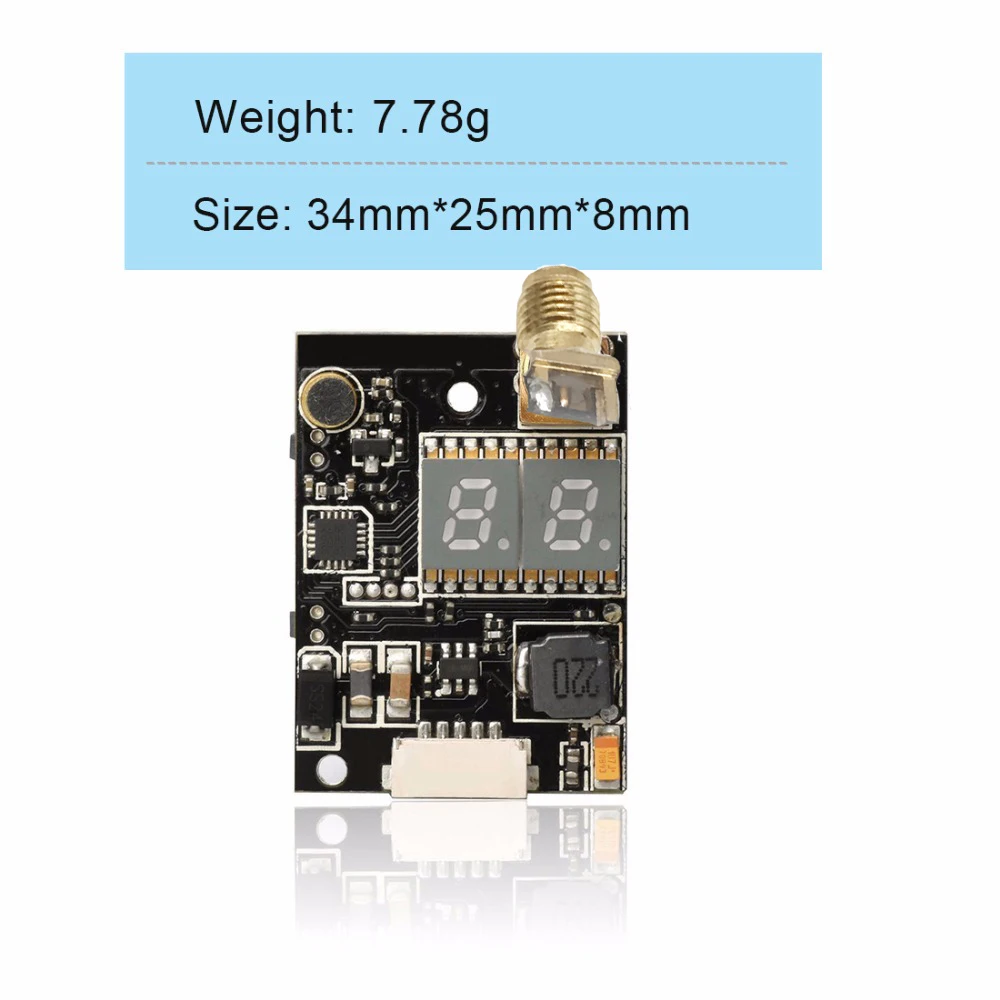

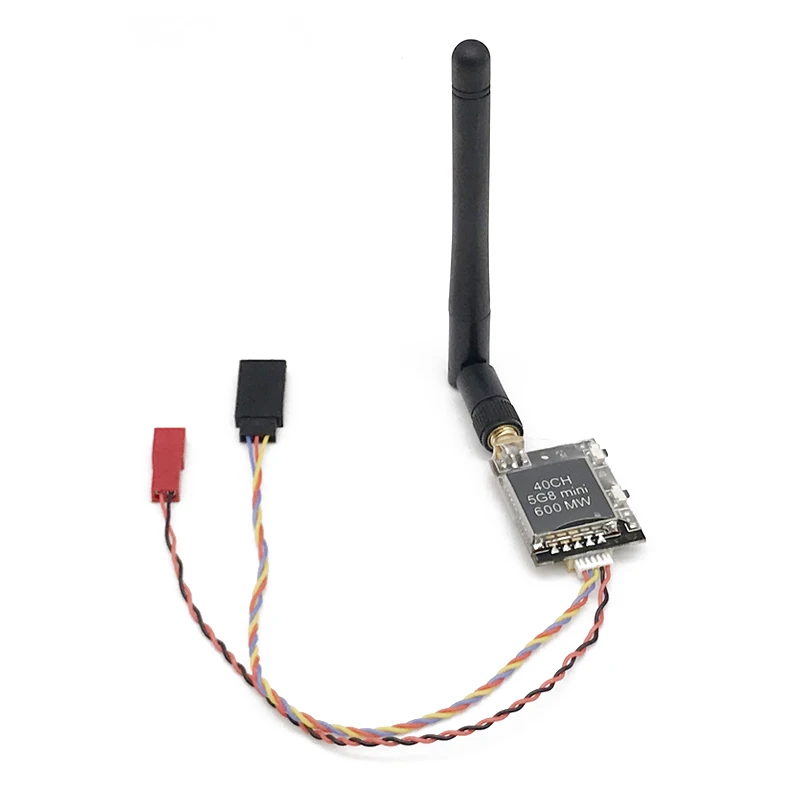

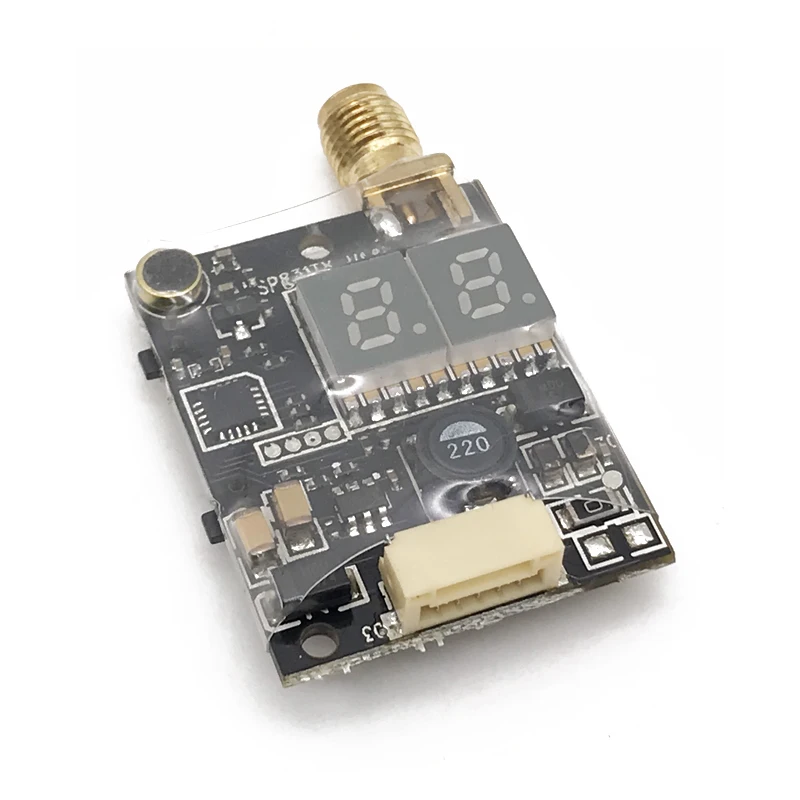

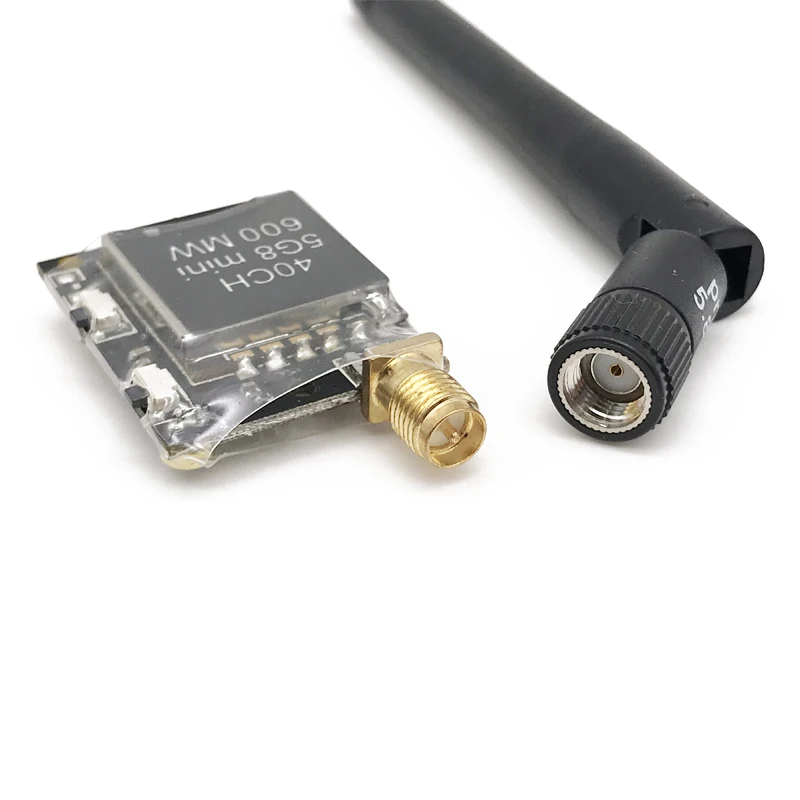

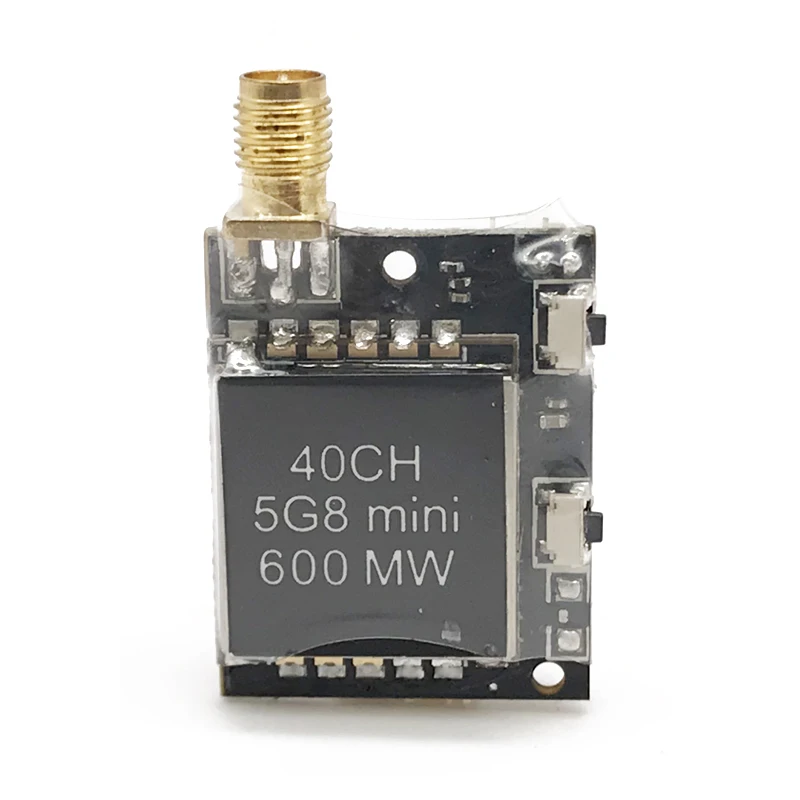

5.8G Double Screen Display 600mW FPV Audio Video Transmitter

40 channels, cover A, b, E ,F, r bands

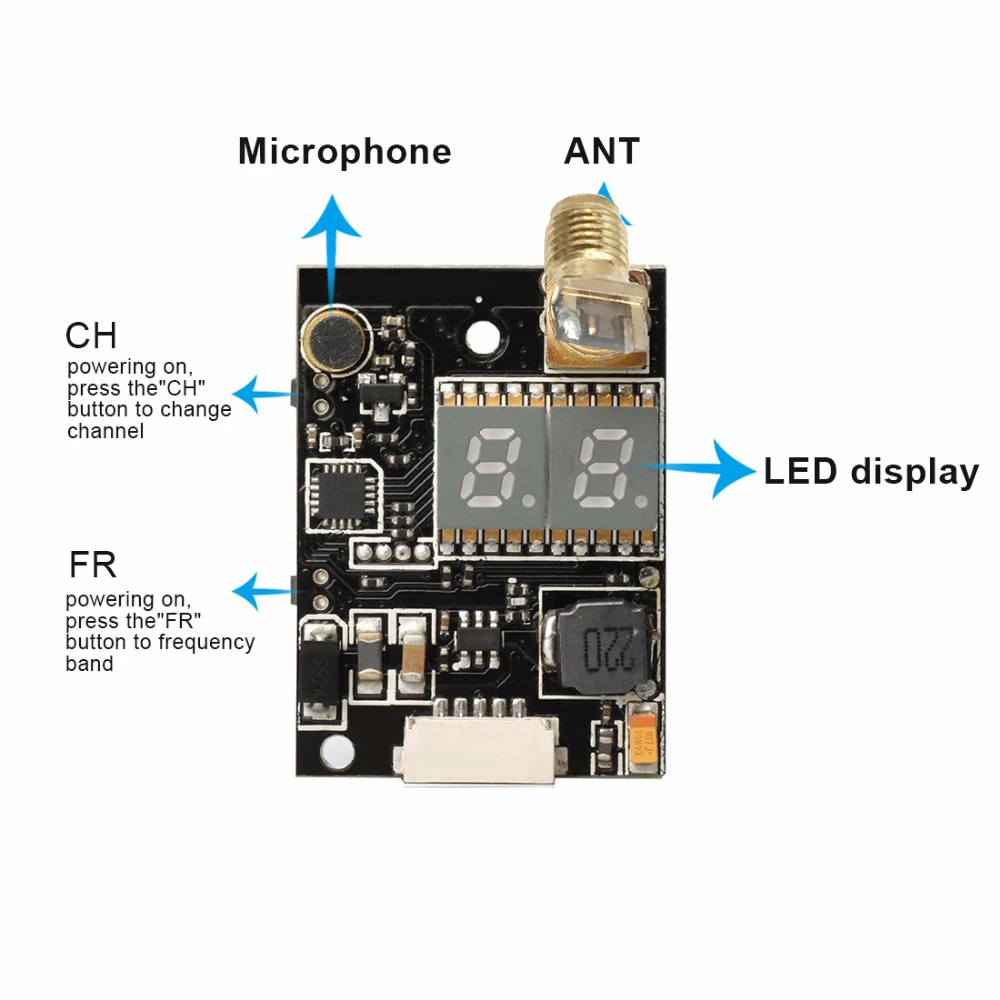

Push button to change channels and frequencies

Double LED display for Channel and Frequency

Power off memory: replay the very last frequency band and channel

It supports full range of 40 channels including raceband 5645MHz-5945MHz.

Feature:

This 5.8GHz 40CH FPV transmitter has double push buttons for easy changing CH and FR.

40 channels: Cover A, b, E, F, r bands. Small size and light weight.

Specification:

Video Format: NTSC/PAL

Output Impedance: 50 Ohm

Transmitter frequency range: 5645-5945MHz

Transmitting distance: > 3000m (open area)

Antenna connector: RP-SMA connector

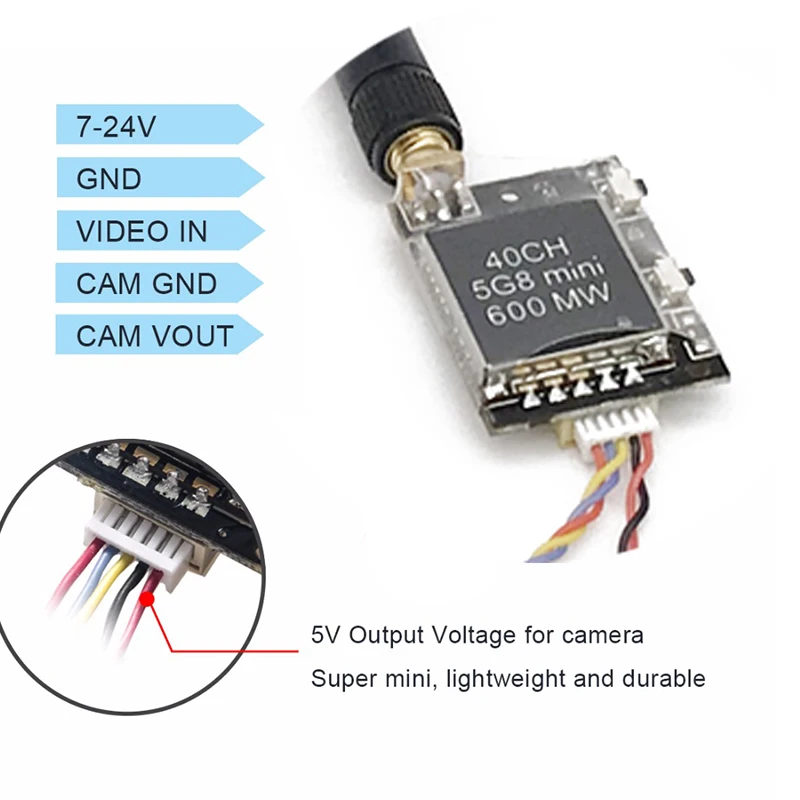

Operating Voltage: 7-24 V

Output Voltage(VOUT): 5 V

Supply current: 280 mA

Operating Temperature: -10 +85 C

Video Band Width: 0-8.0 MHz

Audio carrier Frequency: 6.5 MHz

Video Input Level: 0.8,1.0,1.2 Vp-p

Video Input Impedance: 75 Ohm

Audio Input Level: 0.5 ,2.0 Vp-p

Audio Input Impedance: 10K Ohm

Weight: 15g

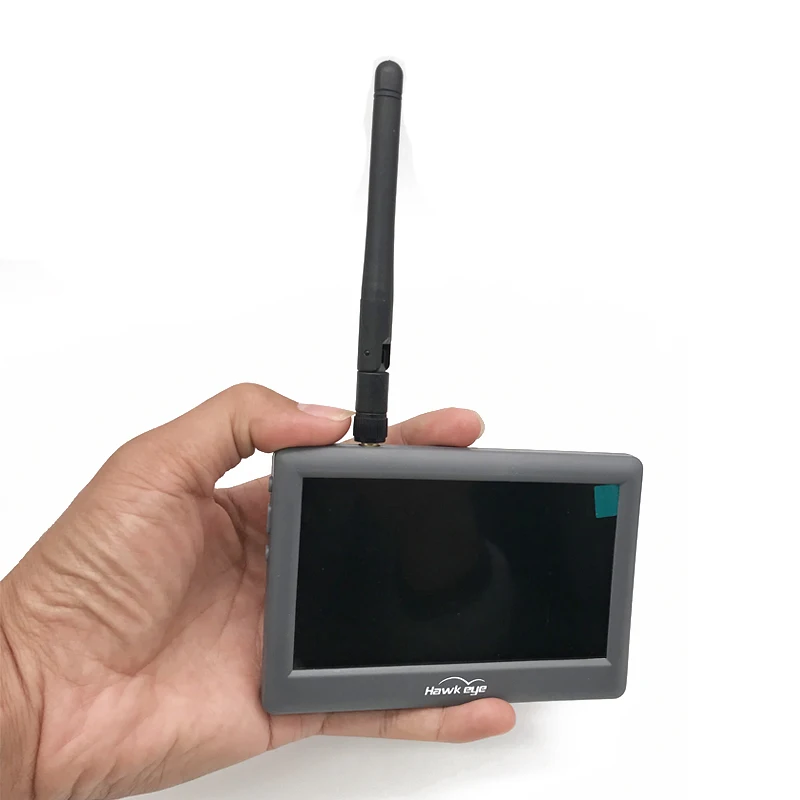

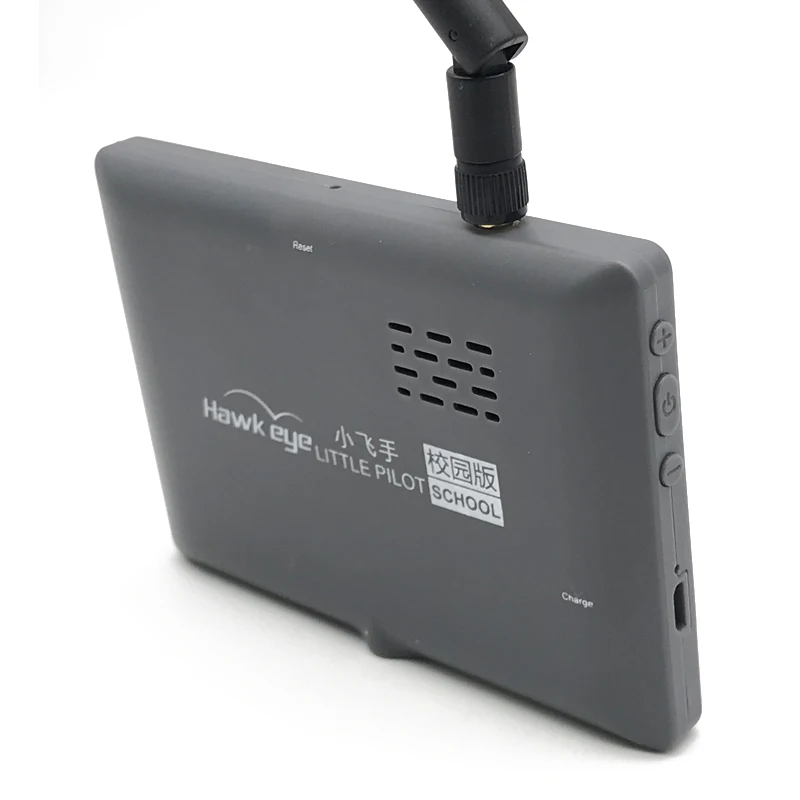

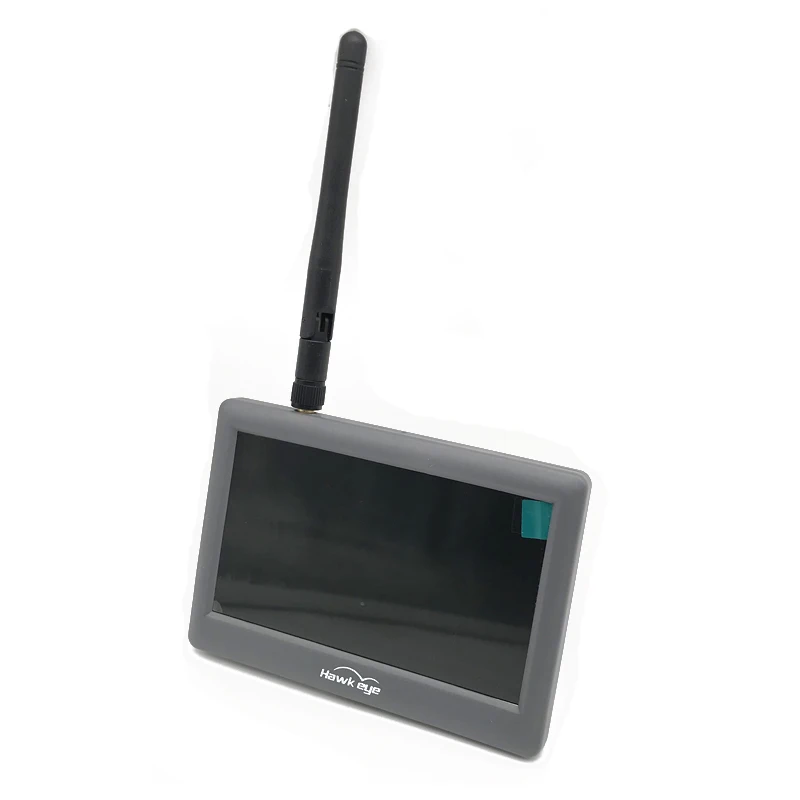

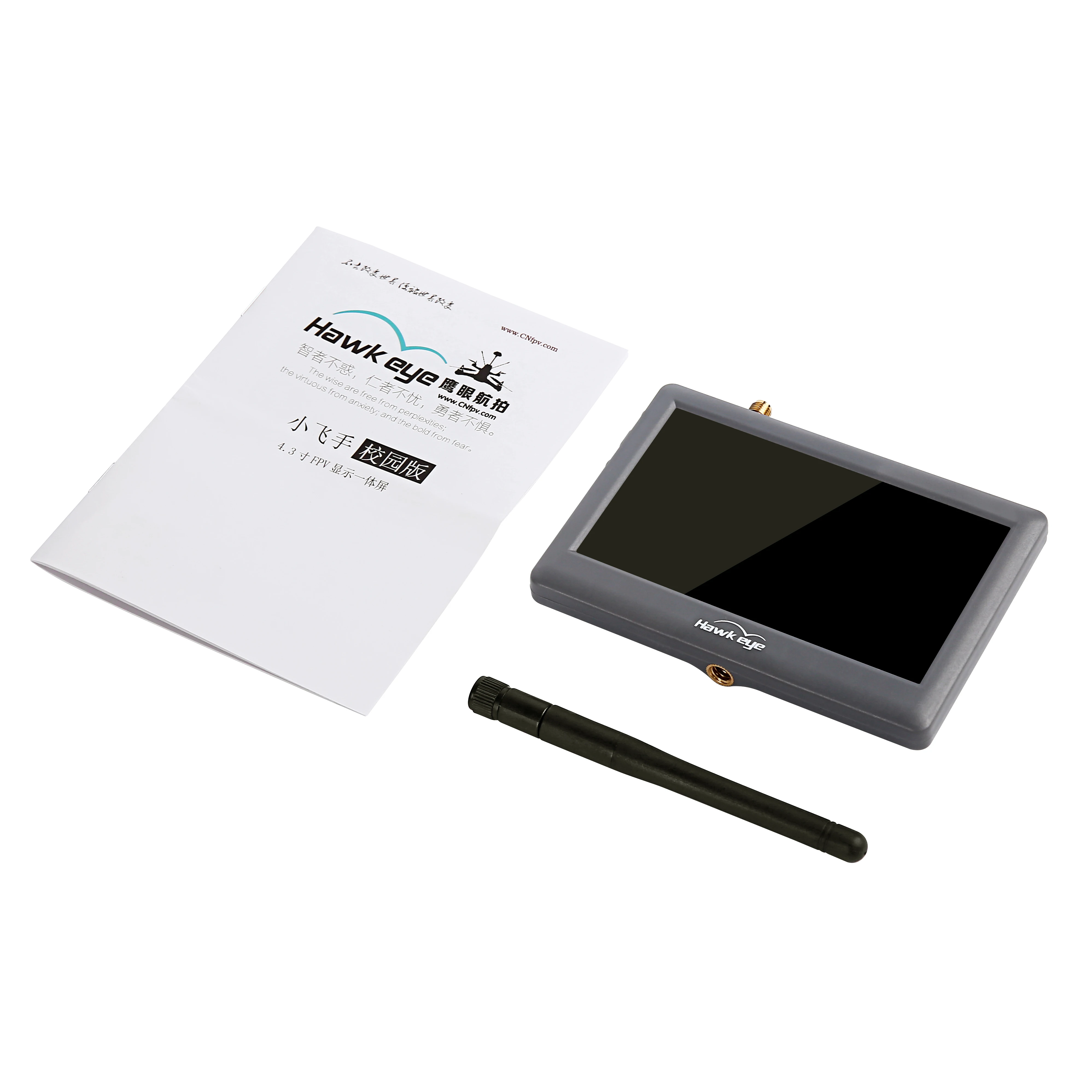

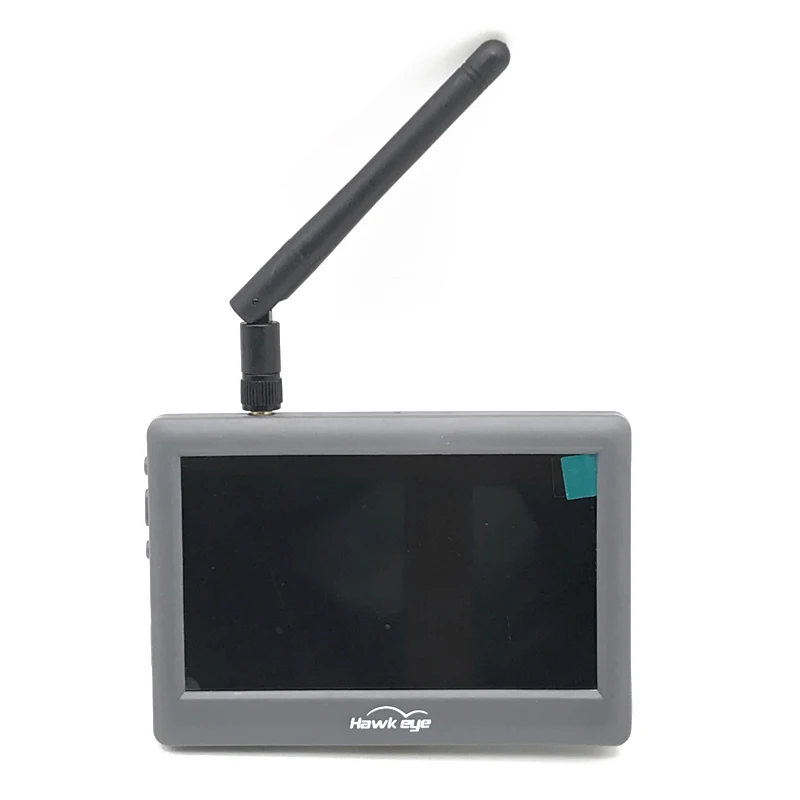

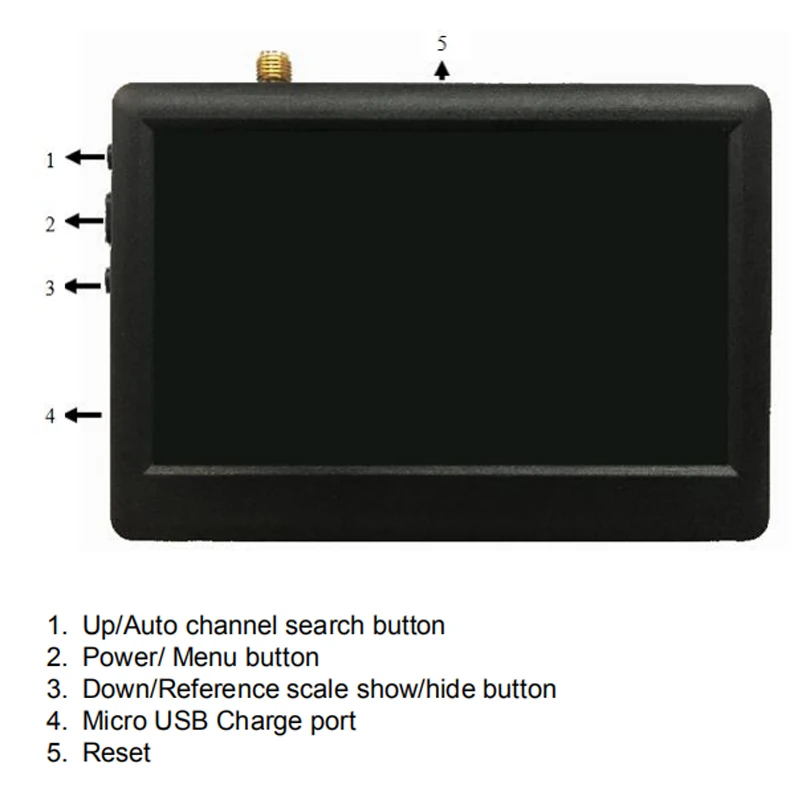

Hawkeye 5.8G 48CH 4.3 Inch FPV Monitor

Description:
Hawkeye Little Pilot School edition, specially designed for RC quadcopter first person view.
Simple and affordable, with excellent performance.
High brightness.
Auto searching.
Built-in battery.
No delay/anti blue screen/anti black screen: the system won’t cause any delay in signal receiving.
Strong anti-interference design ensures the stable flying.

Specifications:
Resolution: 480×3(RGB)x272
Backlight: LED
Brightness: 500 cd
Display ratio: 16:9
Response time: 10ms
Color: PAL/NTSC
Input: Video (PAL/NTSC)
Output: Video
Power: Built-in rechargeable battery
Battery life: About 2.5 hours
Charging: Micro USB port, 1A
Antenna connector: RP-SMA
5.8G sensitivity: -94db
Color: gray
Net weight: 125g
Size: 11.3 x 7.9 x 1.4cm
